R8D Series (Ex IAMD)

R8D Series (Ex IAMD)

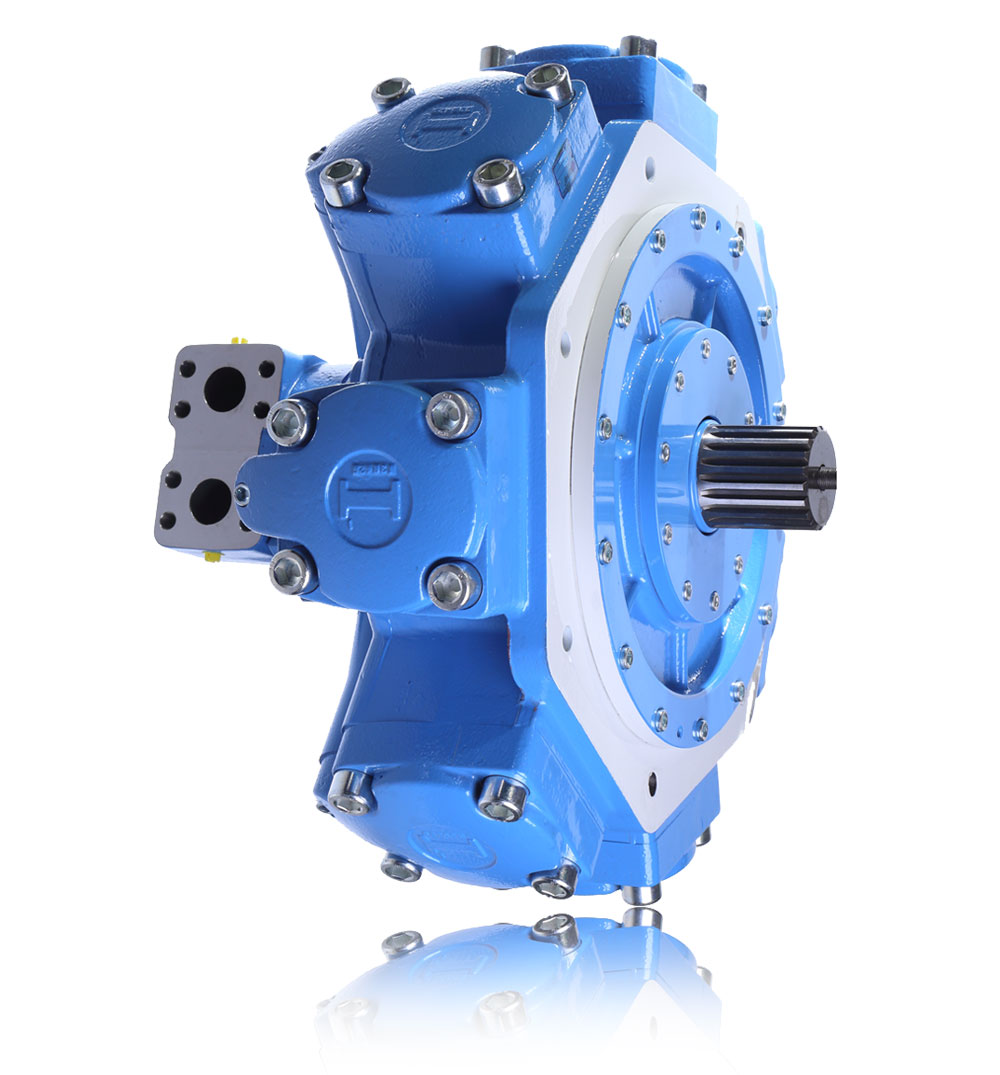

Heavy Duty - Single Displacement Hydraulic Motor

R8D is the evolution of the series IAMD. With unchanged dimensions and mounting face to grant full interchangeability with the old series, R8D is the result of twenty years of continuous improvements and constant growing number of optional and configurations. The use of low friction materials and hydrostatic balancing make this series ideal for the most demanding applications, where high performances are required even for long duty periods.

Features:

  • Fixed displacement
  • Displ. range: 300 cc/rev – 13.000 cc/rev
  • Heavy duty
  • Higher mechanical efficiency, speed and power than standard R8M series
  • Interchangeable mounting face with main competitors

Documents

Documents type

File

Action

Download

Technical data

Motor             Size Number of pistons Displacement
[cc]
Theoretical
Specific Torque
[Nm/bar]
Max cont.
Pressure
[bar]
Hydrostatic Test Pressure [bar] Max cont. Speed
[rpm]
Peak Speed
[rpm]
Max cont. Power
[kW]
Max Power [kW] Dry Weight
[Kg]
R8D 300 H2 5 314 5 270 420 900 1100 42 62 42
R8D 350 H3 5 342 5,4 270 420 850 950 80 120 68
R8D 400 H3 5 397 6,3 270 420 750 860 80 120 68
R8D 450 H3 5 452 7,2 270 420 650 760 80 120 68
R8D 500 H3 5 491 7,8 270 420 600 690 80 120 68
R8D 600 H3 5 594 9,5 270 420 500 570 80 120 68
R8D 800 H4 5 792 12,6 270 420 450 520 120 150 92
R8D 1000 H4 5 992 15,8 270 420 355 405 120 150 92
R8D 1250 H4 5 1247 19,8 270 420 280 320 120 150 92
R8D 1100 H45 5 1182 18,8 250 420 400 450 150 180 120
R8D 1400 H45 5 1376 21,9 250 420 350 400 150 180 120
R8D 900 H5 5 941 15 270 420 550 600 165 200 173
R8D 1000 H5 5 1094 17,4 270 420 500 550 165 200 173
R8D 1200 H5 5 1231 19,6 270 420 450 510 165 200 173
R8D 1400 H5 5 1376 21,9 270 420 410 472 165 200 173
R8D 1600 H5 5 1648 26,2 270 420 370 426 165 200 173
R8D 1800 H5 5 1815 28,9 250 420 340 391 165 200 173
R8D 2000 H5 5 2034 32,4 190 420 280 310 140 160 173
R8D 1800 H55 5 1800 28,7 250 420 250 285 173 215 203
R8D 2100 H55 5 2066 32,9 250 420 220 250 175 215 203
R8D 2300 H55 5 2293 36,5 250 420 210 235 185 215 203
R8D 2400 H55 5 2393 38,9 240 420 190 220 170 200 203
R8D 1800 H6 5 1866 29,7 270 420 350 400 210 235 308
R8D 2000 H6 5 1993 31,7 270 420 350 400 210 235 308
R8D 2200 H6 5 2220 35,3 270 420 325 374 210 235 308
R8D 2500 H6 5 2525 40,2 270 420 285 328 210 235 308
R8D 3000 H6 5 3028 48,2 270 420 235 270 210 235 308
R8D 3500 H6 5 3479 55,4 270 420 210 242 210 235 308
R8D 3400 H7 7 3413 54,3 270 420 200 220 230 258 405
R8D 3600 H7 7 3600 58,1 270 420 185 210 230 258 405
R8D 3900 H7 7 3907 62,2 270 420 175 201 230 258 405
R8D 4300 H7 7 4343 69,1 270 420 160 184 230 258 405
R8D 4600 H7 7 4616 73,5 270 420 150 173 230 258 405
R8D 5000 H7 7 5088 81 270 420 140 161 230 258 405
R8D 5400 H7 7 5384 85,7 270 420 130 150 230 258 405
R8D 6000 H8 10 5966 95 250 420 120 138 190 215 590
R8D 6500 H8 10 6581 104,7 250 420 120 138 190 215 590
R8D 6800 H8 10 6962 110,8 250 420 120 138 190 215 590
R8D 7600 H8 10 7620 121,3 190 420 90 104 190 215 590
R8D 8000 H8 10 8062 128,3 180 420 80 92 190 215 590
R8D 7000 H9 7 7050 112 270 420 160 190 330 370 750
R8D 8000 H9 7 8332 132.6 270 420 135 160 330 370 750
R8D 9000 H9 7 8757 139.4 260 420 130 155 330 370 750
R8D 10000 H9 7 10214 162.6 250 420 110 135 330 370 750
R8D 11000 H9 7 11016 175.3 250 420 105 120 330 370 750
R8D 12000 H9 7 12073 192.2 250 420 95 110 330 370 750
R8D 13000 H9 7 13020 207.3 250 420 90 105 330 370 750
