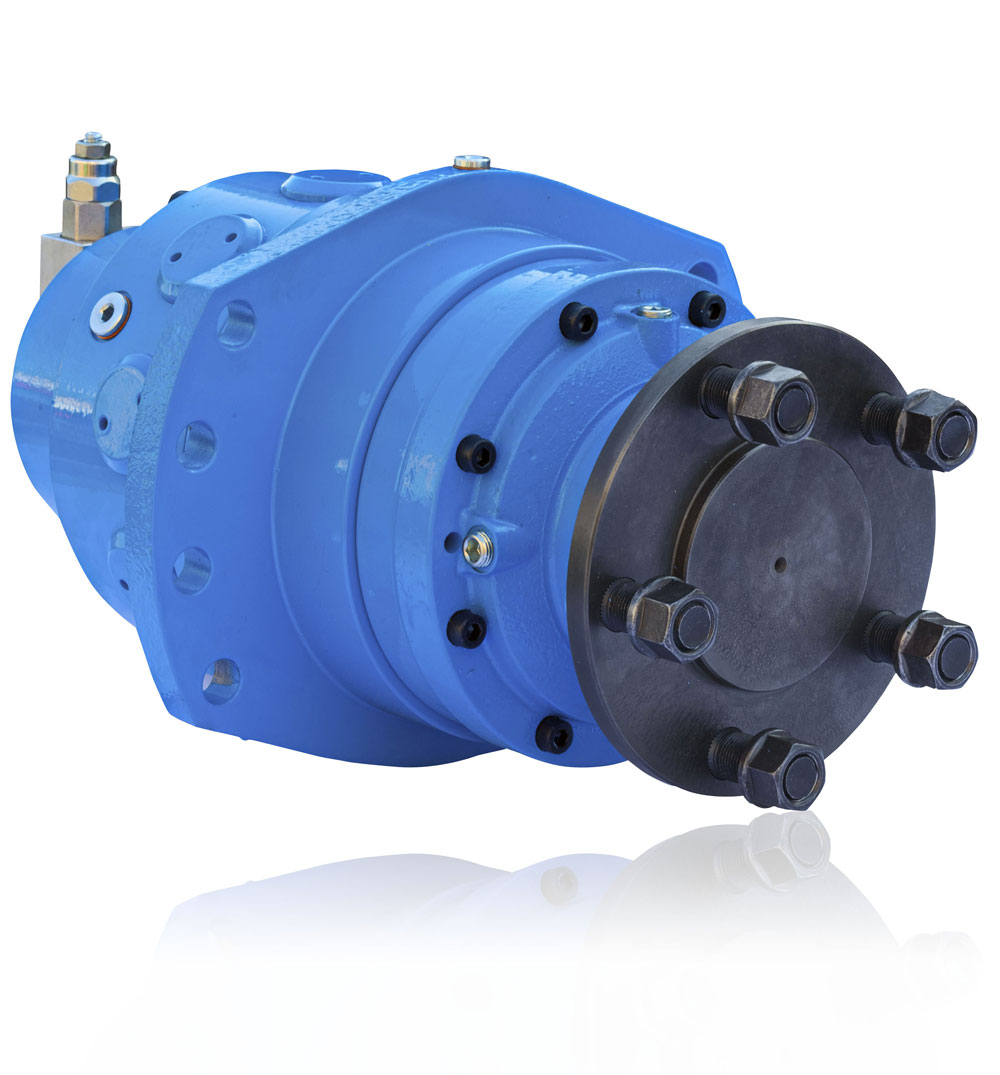

Single & Dual Displacement Wheel Motor

Hydraulic motors of the W series are crankshaft radial piston motors combined with single stage planetary gearbox, rear case mounting and wheel flange.
Thanks to great variety of accessories W series is a complete wheel drive for open or closed circuits used in a wide range of applications.

• High Starting Torque & Low Speed Capability
• Total Displ. Range: 180 cc/rev – 1750 cc/rev
• Max Output Torque: 8750 Nm
• Max Output Speed: 600 rpm
• Fixed and Dual Displacement
• Compact Design
• Big Load Capacity
• Wheel Mounting / Rear Case Mounting
• Built-in Negative Parking Brake
• Built-in Dynamic Drum Brake
• Freewheeling Operation / Mechanical Disengagement
