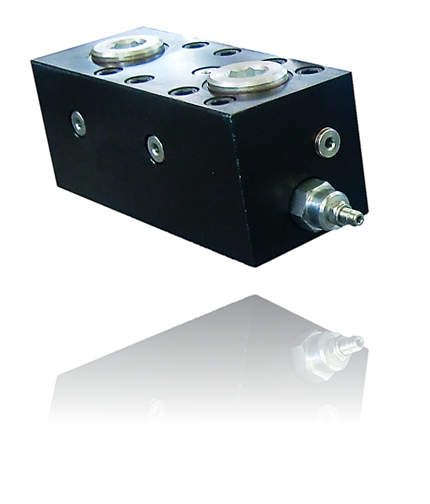

Valvole Flangiabili su Motori

Italgroup offre una gamma di valvole direttamente flangiabili sulla distribuzione motore. In tal modo si garantisce al cliente una soluzione completa che si sposa pienamente con le caratteristiche tecniche dei motori Italgroup.

Tipologie Valvole

  • Valvola di Flussaggio
  • Valvola di Massima
  • Valvola di Bilanciamento
  • Valvola Anticavitazione
  • Composizioni Varie

Documenti

Tipo di documenti

File

Azione

Download

Dati tecnici

 Vavle  Code                   Valve Type Maximum Flow
[l/min]
Maximum Pressure
[bar]
Pilot Ratio Ovc Relief Valve Setting Range [bar] Standard Ovc Relief setting [bar] Relief Valve
Setting [bar]
Standard relief setting [bar] Block Material Distributor Fitting
AP 40 D47 Flushing 80 350 -  -  -  -  - Steel D47 Download
OVSA 160 1 D47 Single Overcenter 160 350 3:1 70 - 280 210 70 -280 210 Steel D47 Download
OVSA 160 2 D47 Single Overcenter 160 350 4.5:1 140 - 350                   210 140 - 350              210 Steel D47
OVSA 160 3 D47 Single Overcenter 160 350 10:1 140 - 350 210 140 - 350 210 Steel D47
OVDA 160 1 D47 Double Overcenter 160 350 3:1 70 -280 210 70 -280 210 Steel D47 Download
OVDA 160 2 D47 Double Overcenter 160 350 4.5:1 140 - 350 210 140 - 350 210 Steel D47
OVDA 160 3 D47 Double Overcenter 160 350 10:1 140 - 350 210 140 - 350 210 Steel D47
OVDA 300 1 D75 Double Overcenter 300 350 3:1 70 -280 210 70 - 280 210 Steel D75 Download
OVDA 300 4 D75 Double Overcenter 300 350 10:1 140 - 350 210 140 - 350 210 Steel D75
OVDA 300 2 D75 Double Overcenter 300 350 4.5:1 140 - 350 210 140 - 350 210 Steel D75
OVDA 480 1 D90 Double Overcenter 600 350 3:1 70 -280 210 70 - 280 210 Steel D90 Download
OVDA 480 4 D90 Double Overcenter 600 350 10:1 140 - 350 210 140 - 350 210 Steel D90
OVDA 480 2 D90 Double Overcenter 600 350 4.5:1 140 - 350 210 140 - 350 210 Steel D90
ORVSA 200 1 C D75 Relief & Overcenter 300 350 3:1 70 - 280 210 70 - 420 70 Steel D75 Download
ORVSA 200 4 C D75 Relief & Overcenter 300 350 10:1 140 - 350 210 70 - 420 70 Steel D75
ORVSA 200 2 C D75 Relief & Overcenter 300 350 4.5:1 140 - 350 210 70 - 420 70 Steel D75
ORVSA 480 1 D90 Relief & Overcenter 600 350 3:1 70 - 280 210 70 - 420 70 Steel D90 Download
ORVSA 480 4 D90 Relief & Overcenter 600 350 10:1 140 - 350 210 70 - 420 70 Steel D90
ORVSA 480 2 D90 Relief & Overcenter 600 350 4.5:1 140 - 350 210 70 - 420 70 Steel D90
RVDAC80 C D47 Double Relief 200 350 - - - 20 - 350 20 Steel D47 Download
RVDA 200 C D75 Double Relief 200 350 - - - 70 - 420 70 Steel D75 Download
RVDA 380 C D90 Double Relief 380 350 - - - 70 - 420 70 Steel D90 Download
RVDAP80 C D47 Double Relief + Flushing 200 350 - - - 20 - 350 70 Steel D47 Download
RVDAP90 C D90 Double Relief + Flushing                                         380 + 80 350 - - - 20 - 350 20 Steel D90 Download
RVSAC200 C D47  Single Relief + Anticavitation 200 + 160 350 - - - 70 - 420 70 Steel D47 Download
AC 80 D47 Anticavitation 200 350 - - - - - Steel D47 Download
DRVSO200EP1 C D75 Relief & Overcenter 300 350 3:1 70 - 280 210 70 - 420 70 Steel D75 Download
DRVSO200EP4 C D75 Relief & Overcenter 300 350 10:1 140 - 350 210 70 - 420 70 Steel D75
DRVSO200EP2 C D75 Relief & Overcenter 300 350 4.5:1 140 - 350 210 70 - 420 70 Steel D75
