IAC Series (Phasing Out)

IAC Series (Phasing Out)

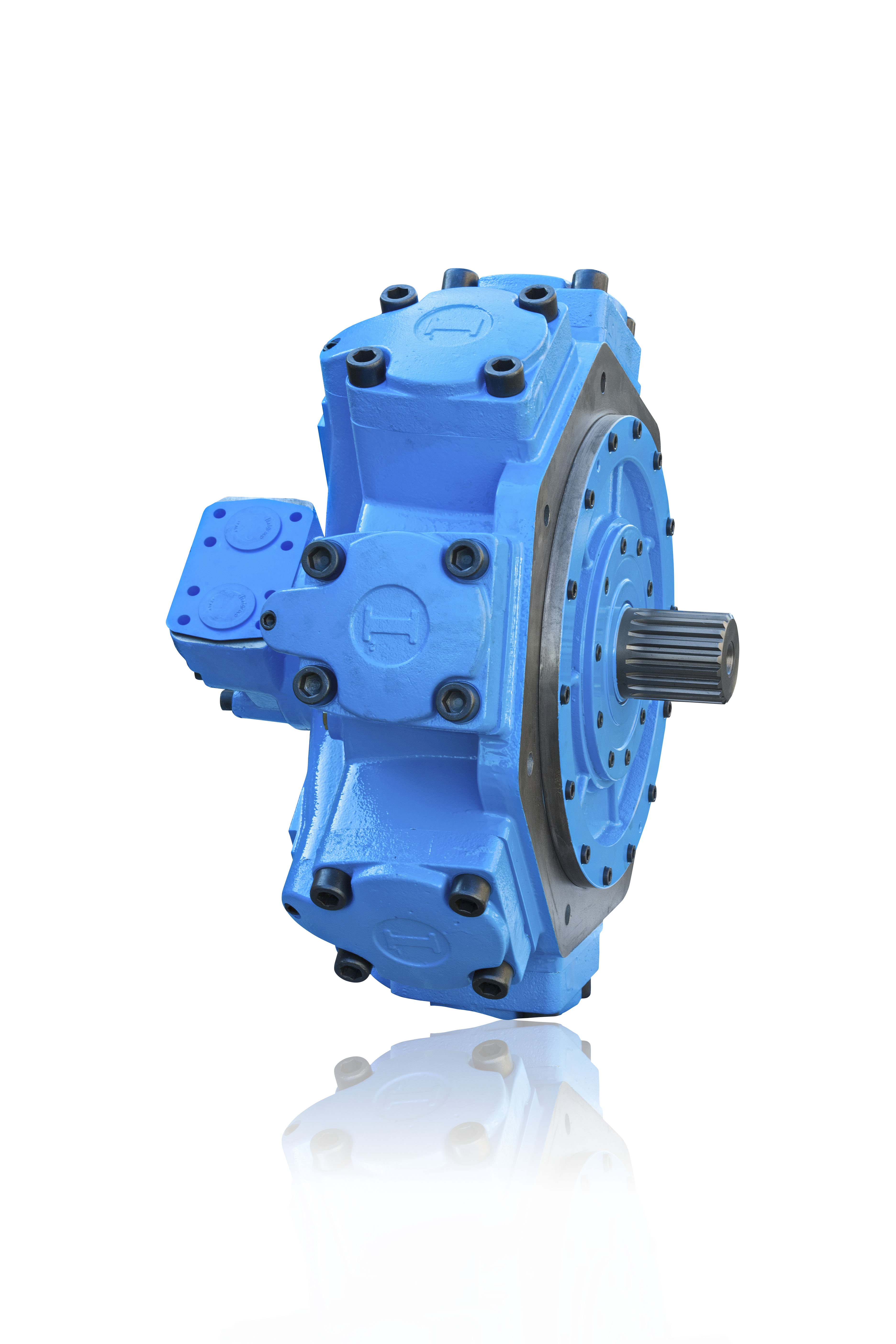

Dual Displacement Hydraulic Motor

Starting from January 1st 2019, the IAC series has been replaced by the more performing and efficient R8C series.

The new R8C is fully interchangeable with the previous IAC, granting easy replacement of existing motors in the aftermarket: Go to R8C Series







Documents

Documents type

File

Action

Download

Technical data

Motor       Size Number of pistons Min.
Displacement range (from...to)
[cc]
Max.
Displacement range (from...to)
[cc]
Max cont.
Pressure
[bar]
Max int.
Pressure [bar]
Max Peak Pressure [bar] Max cont. Power
[kW]
Dry Weight [Kg]
IAC 195 H1 5 69 .. < Max Disp. 75 .. 195 270 310 350 45 26 Download
IAC 250 H1 5 95 .. < Max Disp. 150 .. 257 250 310 350 48 26
IAC 500  H3 5 98 .. < Max Disp. 255 .. 492 270 310 350 78 68 Download
IAC 800 H4 5 165 .. < Max Disp. 328 .. 792 270 310 350 125 92 Download
IAC 1400 H5 5 0 .. < Max Disp. 574 .. 1600 270 310 350 172 173 Download
IAC 2200 H55 5 0 .. < Max Disp. 655 .. 2200 270 310 350 170 210 Download
IAC 3000 H6 5 0 .. < Max Disp. 820 .. 3085 270 310 350 270 308 Download
IAC 4600 H7 7 0 .. < Max Disp. 492 .. 4600 270 310 350 290 405 Download
IAC 5400 H7 7 0 .. < Max Disp 655 .. 5326 250 310 350 265 405
