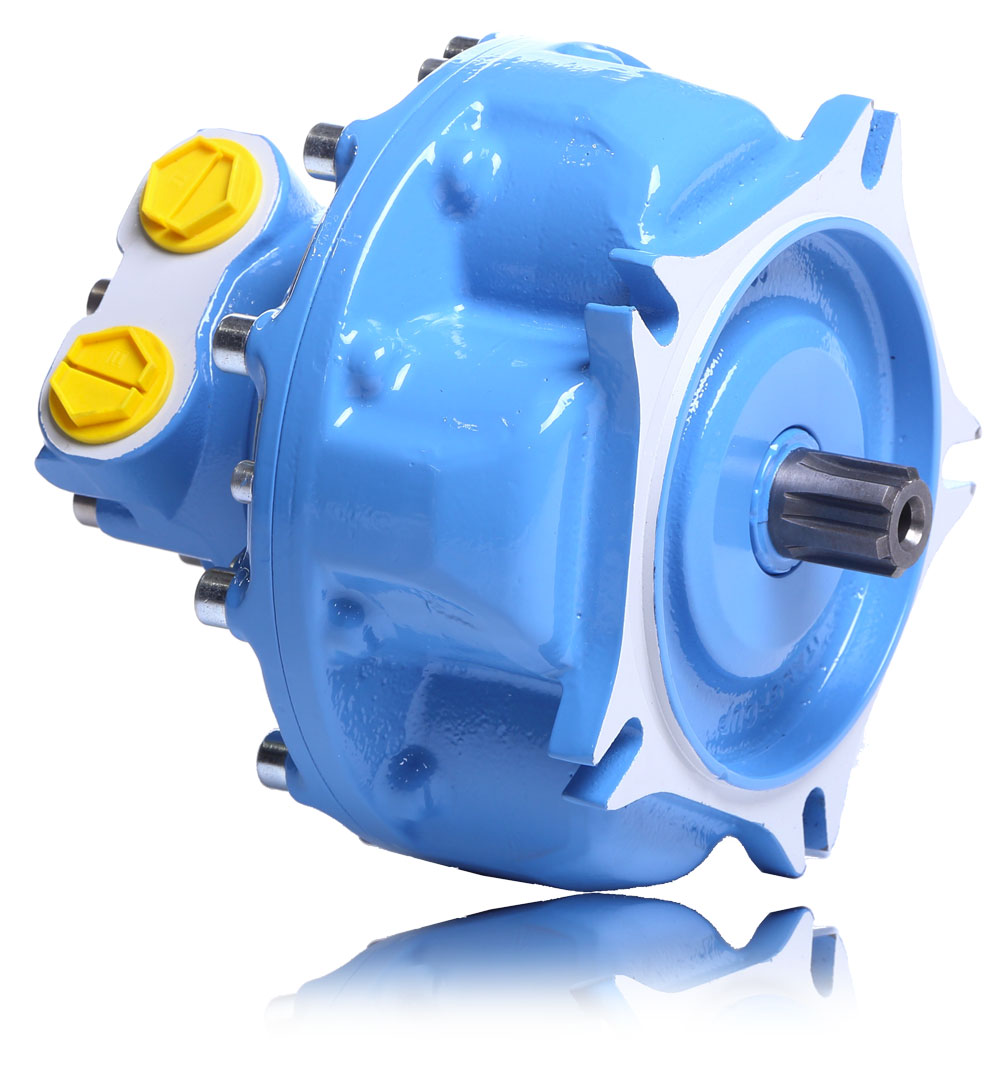

Siwel Cylinder - Single Displacement Hydraulic Motor

High rotation speed and compact size combine with high specific torque to deliver weight/power ratios unique in this class. High rotation speeds are also permitted in freewheeling conditions. thanks to new internal design intended to optimise efficiencies, the hc series deals easily with freewheeling, emerging unscathed even after lengthy periods of operation.
All these properties, combined with an ever-increasing range of displacements (from 40 ÷ 2000 cc/rev) and accessories, offer a definitive solution for a vast number of applications in the most widely varying industrial fields.


Features:

- fixed displacement
- displ. range: 40 cc/rev – 2000 cc/rev
- compact design
- high cavitation resistance
- freewheeling operation
- higher mechanical efficiency, speed and power than standard iam series

for more info and catalogues contact us: sales@italgroup.eu

Documents

Documents type

File

Action

Download

Technical data

Motor                         Number of pistons Size   Displacement  Theoretical Max cont.  Max int. Max Peak  Max cont. Speed Peak Speed Max cont. Power

Max Power



[kW]

Dry Weight
[cc]  Specific Torque [Nm/bar]  Pressure [bar] Pressure [bar] Pressure [bar] [rpm] [rpm] [kW] [Kg]
HC05 40 5 5 40 0,62 250 320 350 1200 1400 16 25 30
HC05 60 5 5 60 0,97 250 320 350 1200 1400 25 35 30
HC05 75 5 5 74 1.20 250 320 350 1200 1400 32 50 30
HC05 90 5 5 91 1.40 250 320 350 1000 1300 32 50 30
HC05 110 5 5 115 1,84 250 320 350 850 1100 35 55 30
HC05 130 5 5 129 2.05 250 320 350 850 1100 35 55 30
HC05 150 5 5 151 2.40 250 320 350 850 1100 35 55 30
HC05 175 5 5 166 2,65 250 320 350 750 1000 35 55 30
HC05 200 5 5 191 3,04 250 320 350 750 1000 35 55 30
HC05 250 5 5 226 3,6 250 320 350 600 800 35 55 30
HC1 100 5 1 98 1.57 250 320 350 1100 1250 40 60 34
HC1 150 5 1 154 2.45 250 320 350 700 1000 40 60 34
HC1 175 5 1 173 2,74 250 320 350 700 1000 45 75 34
HC1 200 5 1 200 3.20 250 320 350 600 900 45 75 34
HC1 250 5 1 243 3,88 250 320 350 600 800 50 75 34
HC1 300 5 1 289 4,61 250 320 350 550 700 50 75 34
HC1 330 5 1 315 5.01 250 320 350 450 650 50 75 34
HC2 200 5 2 193 3.06 250 320 350 1200 1500 75 105 53
HC2 250 5 2 251 4.00 250 320 350 950 1150 75 105 53
HC2 300 5 2 305 4,84 250 320 350 800 950 75 105 53
HC2 350 5 2 348 5.52 250 320 350 650 800 75 105 53
HC2 400 5 2 424 6,76 250 320 350 600 800 75 105 53
HC2 500 5 2 493 7,84 250 320 350 520 700 75 105 53
HC2 600 5 2 566 9.00 250 320 350 480 650 75 105 53
HC2 650 5 2 624 9,92 250 320 350 440 620 75 105 53
HC3 350 5 3 352 5,6 250 320 350 640 800 85 130 92
HC3 400 5 3 426 6,78 250 320 350 600 800 85 130 92
HC3 500 5 3 486 7,73 250 320 350 500 700 85 130 92
HC3 600 5 3 595 9.47 250 320 350 450 600 85 130 92
HC3 700 5 3 689 10,98 250 320 350 420 600 85 130 92
HC3 800 5 3 792 12,6 250 320 350 400 550 85 130 92
HC3 900 5 3 872 13,9 250 320 350 360 525 85 130 92
HC3 1000 5 3 988 15,7 250 320 350 310 500 85 130 92
HC4 400 5 4 402 6,4 250 320 350 850 1050 92 140 155
HC4 500 5 4 505 8 250 320 350 750 900 92 140 155
HC4 600 5 4 639 10,2 250 320 350 650 800 92 140 155
HC4 800 5 4 789 12,6 250 320 350 550 700 92 140 155
HC4 900 5 4 904 14,4 250 320 350 500 600 92 140 155
HC4 1000 5 4 1022 16,3 250 320 350 450 560 92 140 155
HC4 1100 5 4 1116 17,8 250 320 350 415 520 92 140 155
HC4 1250 5 4 1247 19,8 250 320 350 370 465 92 140 155
HC4 1300 5 4 1315 20,9 250 320 350 350 440 92 140 155
HC5 800 5 5 808 12,6 250 320 350 350 470 100 150 178
HC5 1000 5 5 1040 16,2 250 320 350 320 470 100 150 178
HC5 1200 5 5 1190 18,5 250 320 350 320 430 100 150 178
HC5 1300 5 5 1340 20,9 250 320 350 320 430 100 150 178
HC5 1500 5 5 1464 22,8 250 320 350 300 380 100 150 178
HC5 1600 5 5 1635 25,4 250 320 350 280 350 100 150 178
HC5 1800 5 5 1816 28,3 250 320 350 280 350 100 150 178
HC5 2000 5 5 2010 31,3 250 320 350 220 280 100 150 178
