G&GD Series

G&GD Series

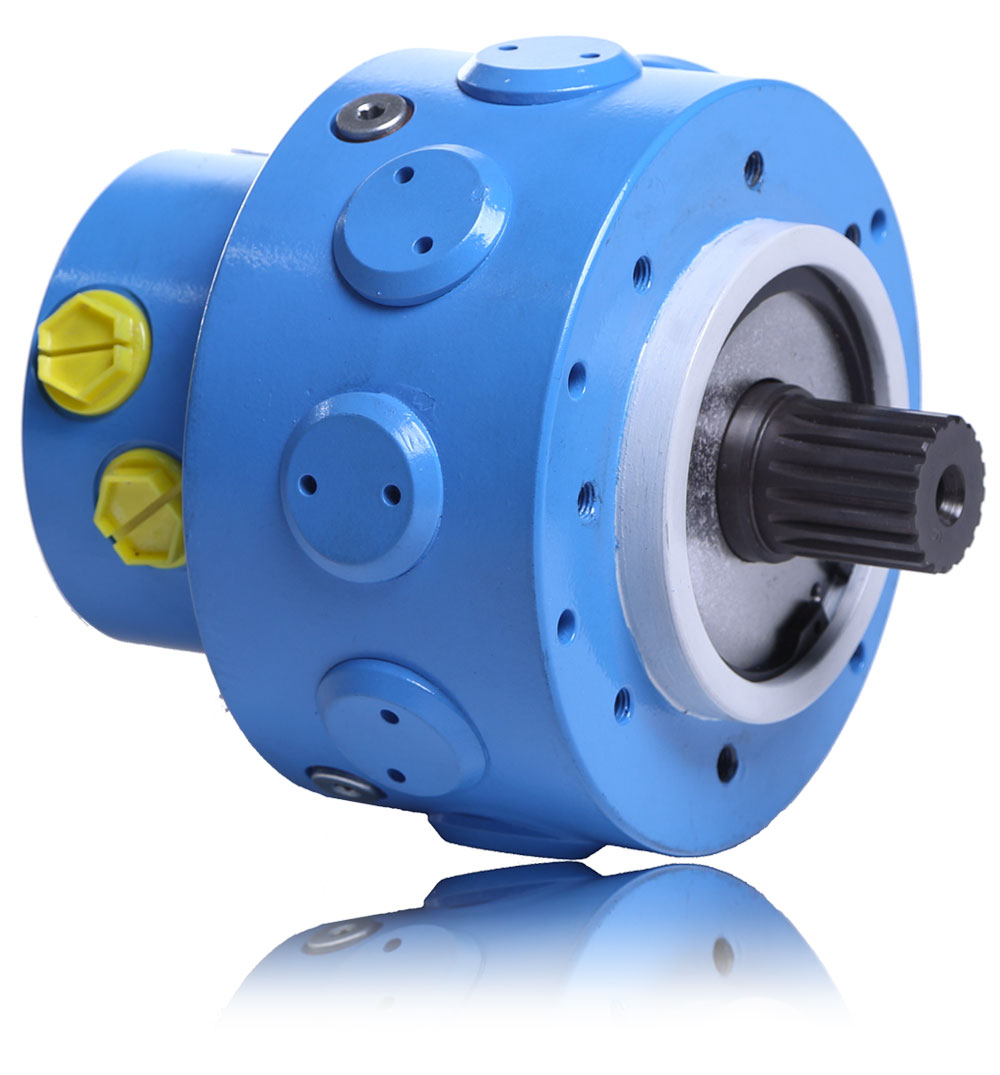

Compact - High Speed Single & Dual Displacement Motor

The series of hydraulic motors with 9 radial pistons offer high speed and compactness, in both single and double displacement types. All available starting from 20 cc to provide the efficiency of the radial piston construction type even for small displacements.

Features:

- fixed & dual displacement
- displ. range: 20 cc/rev – 100 cc/rev
- speed: up to 2400 rpm
- compact design
- high cavitation resistance
- freewheeling operation

for more info and catalogues contact us: sales@italgroup.eu

Technical data

G Series - Single Displacement Motor

Motor Number of pistons Displacement [cc]

Theoretical
Specific Torque [Nm/bar]

Max cont.
Pressure
[bar]
Max int.
Pressure [bar]
Max Peak Pressure  [bar] Max cont. Speed
[rpm]
Peak Speed [rpm]

Max cont. Power
[kW]
Max Power [kW] Dry Weight
[Kg]
G20 9 20,5 0,32 250 280 350 2400 2500 10 12 19 Download
G27 9 27,3 0,43 250 280 350 2400 2500 14 17 19
G34 9 34,2 0,54 250 280 350 2400 2500 17 21 19
G50 9 50,9 0,81 250 280 350 2300 2400 25 31 25 Download
G75 9 76,3 1,21 250 280 350 2150 2300 35 44 25
G90 9 89 1,41 250 280 350 2000

2200

2200
42 52 25
G100 9 102 1,61 250 280 350 1900 2200 48 60 25

GD Series - Dual Displacement Motor

Motor Number of pistons Min
Displacements range (from .. to) [cc]
Max
Displacements range (from .. to) [cc]
Max Cont. Pressure
[bar]
Max Int. Pressure [bar] Max Peak Pressure [bar] Max Cont.Power
[kW]
Peak Power [kW] Dry Weight [kg]
GD 100 9 31 .. 50 50 .. 100 250 275 350 48 60 25 Download
